São Paulo

São Paulo

Facts

Total Area
1.398,00 m²
Built Area
1.660 m²
Conclusion
2016

Project

Office
Jacobsen Arquitetura
Office's Team
Paulo Jacobsen, Bernardo Jacobsen, Edgar Murata, Marcelo Vessoni, Jaime Cunha Jr., Christian Rojas, Henrique Vetro, Maya Leal.
Interiors
Jacobsen Arquitetura
Interiors' Team
Tatiana Kamogawa, Mariana Ferretti
Landscape
Bonsai Paisagismo
Light Design
Maneco Quinderé
Automation Design
Roberto Molnar
Electrical and Hydraulic Installations
Grau Engenharia
Design of Air Conditioning
Grau Engenharia
Structural Design
Leão e Associados
Security Project
Vision Sec
Wood Frames
Oficina de Marcenaria
Aluminum Frames
Snaldi
Construction
Alle Engenharia
Photos
FERNANDO GUERRA | FG+SG
2007_residencia_gaf_02
2007_residencia_gaf_18
2007_residencia_gaf_15

We worked with a maximum lot occupation and construction limit in the design of the house for a couple and their three children in São Paulo.

The L-shaped project was built within the frontal boundaries and one of the sides of the ground floor. Therefore, at the same time we created a physical and visual protection toward the street, we released a maximum amount of space for the garden, with complete privacy yet greater sunlight. The square shape of the pool sought to formally represent the importance of this free area, which functions as the spatial core of the house and all of the family’s activities.

2007_residencia_gaf_03
2007_residencia_gaf_13
2007_residencia_gaf_08
2007_residencia_gaf_09
2007_residencia_gaf_04

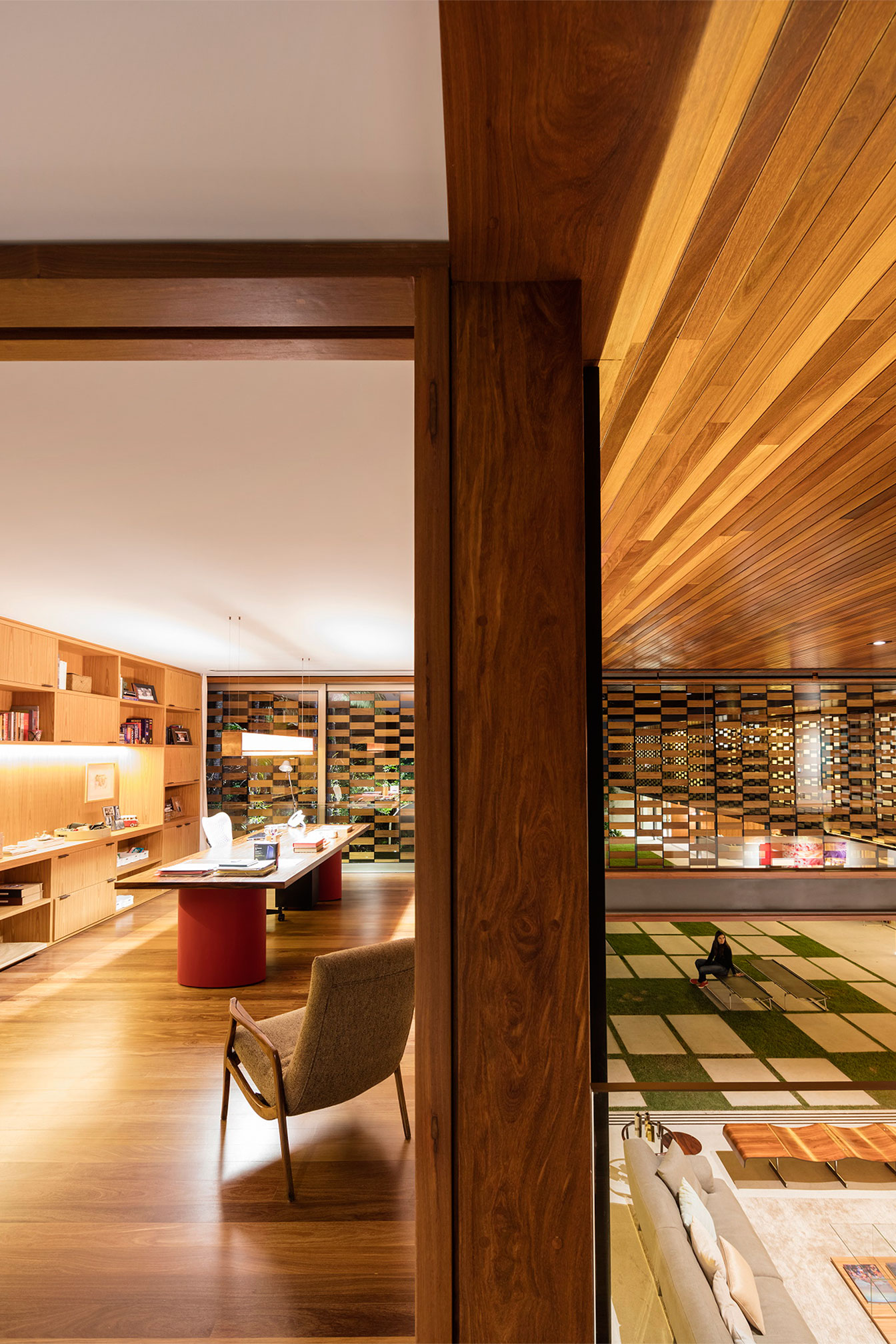

The program demanded by the clients was based on clear compartmentalization: the garage and service area was to be underground; the living, dining, kitchen and verandas on the ground floor; and lastly, the bedrooms, family room and office on the upper floor.

The ground floor is characterized by the opening into the garden and transparency that imbues it with the character of support pillars. The street access features a covered pergola to the front door, which doubles as porte-cochere for cars entering the garage. Here, the ground floor and upper floors are displaced to avoid a two-story façade facing the street.

2007_residencia_gaf_16
2007_residencia_gaf_05
2007_residencia_gaf_17
2007_residencia_gaf_06

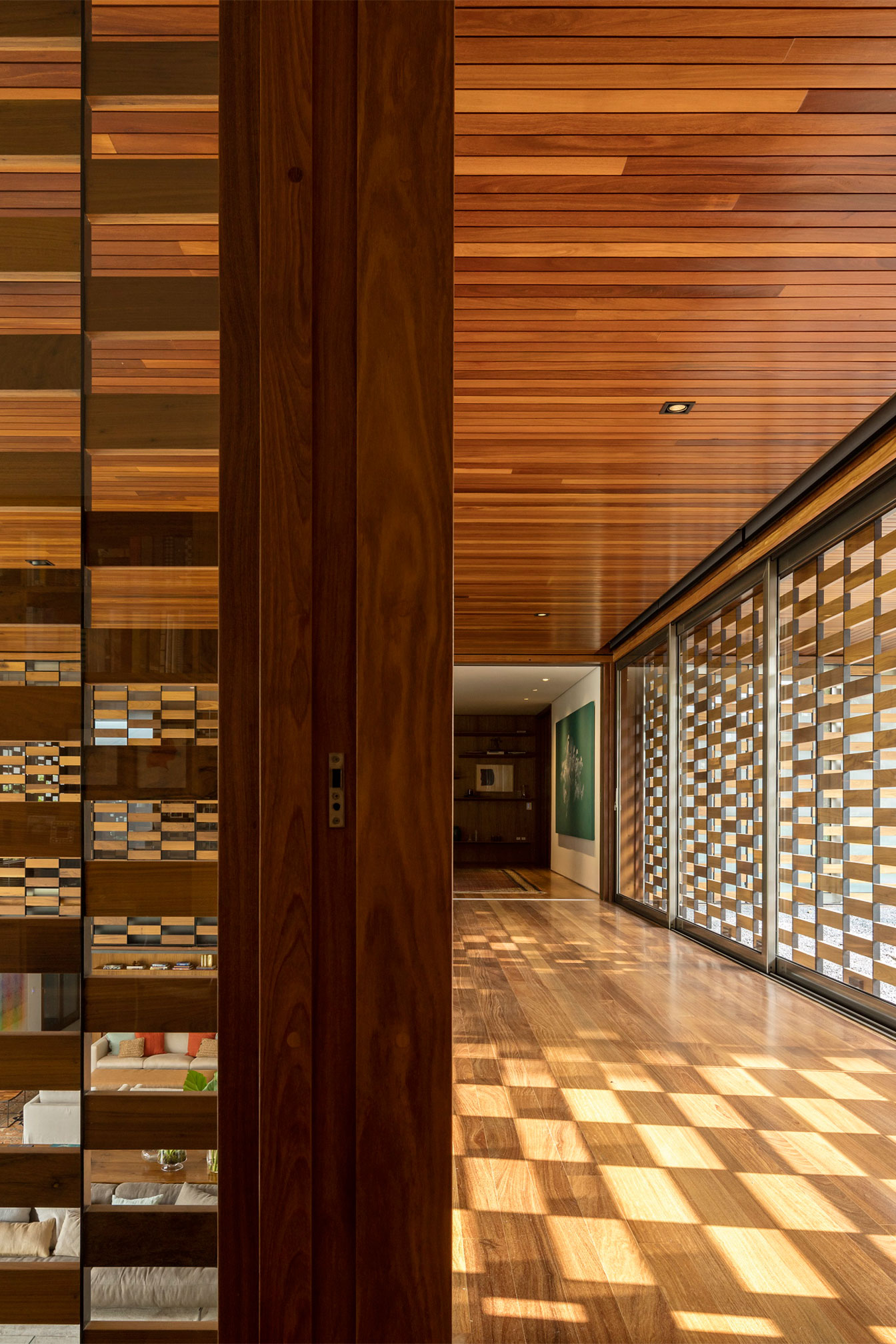

The upper floor is entirely enveloped by a wooden skin consisting of mobile and fixed panels structured in metallic frames. The development of this element required several prototypes and special opening systems. In addition to providing visual protection and allowing in natural light and ventilation, the wood panels transfer a unique identity for the project’s façade.

2007_residencia_gaf_10
2007_residencia_gaf_07
2007_residencia_gaf_11
2007_residencia_gaf_12
2007_residencia_gaf_plantas_terreo
2007_residencia_gaf_plantas_inferior
2007_residencia_gaf_plantas_superior
2007_residencia_gaf_elevacao
2007_residencia_gaf_cortes1
