Bragança Paulista, SP

Bragança Paulista, SP

Facts

Total Area
6.000,00 m²
Built Area
1.200,00 m²
Conclusion
2008

Project

Office
Bernardes + Jacobsen Arquitetura
Office's Team
Andrés Galvez, Edgar Murata, Gabriel Bocchile, Jaime Cunha Junior, Maurício Bicudo, Valesca Daólio
Interiors
Bernardes + Jacobsen Arquitetura (Eza Viegas)
Interior's Team
Fernanda Riotto, Jinny Yim, Paula Tega
Light Design
Studio iluz
Landscape
Isabel Duprat
Photos
Leonardo Finotti
2007_residencia_fn_2
2007_residencia_fn_3

The FN residence is located in the city of Itatiba, countryside of São Paulo. The site presented a significant level difference and its location to the road led the access to be made from the lower level.

2007_residencia_fn_6
2007_residencia_fn_7
2007_residencia_fn_9
2007_residencia_fn_8

The design approach resulted in the creation of a flat area on the higher side, allowing the house to have a view of the horizon. The architectural program was distributed in two perpendicular axes, defining the volumes that support the different functions. At the intersection of those volumes, the main access and the vertical circulation are responsible to organize levels and the internal flow of activities. The first volume supported by columns emerges from the landscape and crosses the site profile. The second volume stands parallel to the horizon, creating a plateau where the recreation is located.

2007_residencia_fn_4
2007_residencia_fn_5
2007_residencia_fn_10
2007_residencia_fn_13
2007_residencia_fn_12
2007_residencia_fn_11

The formal simplicity, enhanced by the regularity of the Wood panels used in the exterior planes, does not demonstrate the complexity of the internal spaces, where in some architectural elements were attributed double meanings.

2007_residencia_fn_21
2007_residencia_fn_14
2007_residencia_fn_18

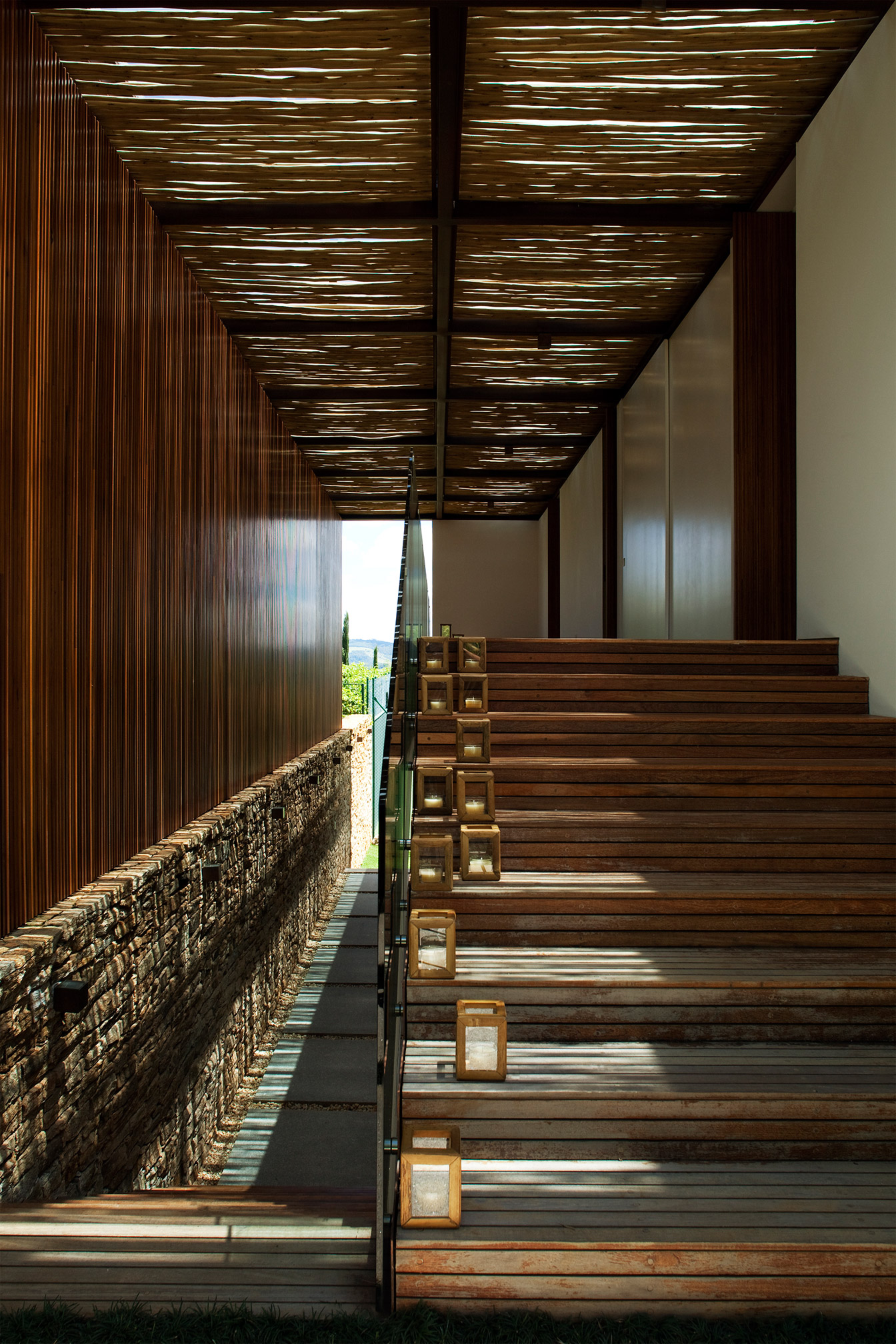

Such as the main access that presents itself behind a big wood panel on the columns axis, opening up to an ample staircase, which is also the entrance hall.

2007_residencia_fn_25
2007_residencia_fn_23
2007_residencia_fn_37
2007_residencia_fn_15

From this access, a gallery receives the sunlight by a glass roof, and wood kindlings distribute the flow from the social area and gives access to the service area, which has an independent entrance as well.

2007_residencia_fn_36
2007_residencia_fn_31
2007_residencia_fn_30
2007_residencia_fn_28
2007_residencia_fn_24

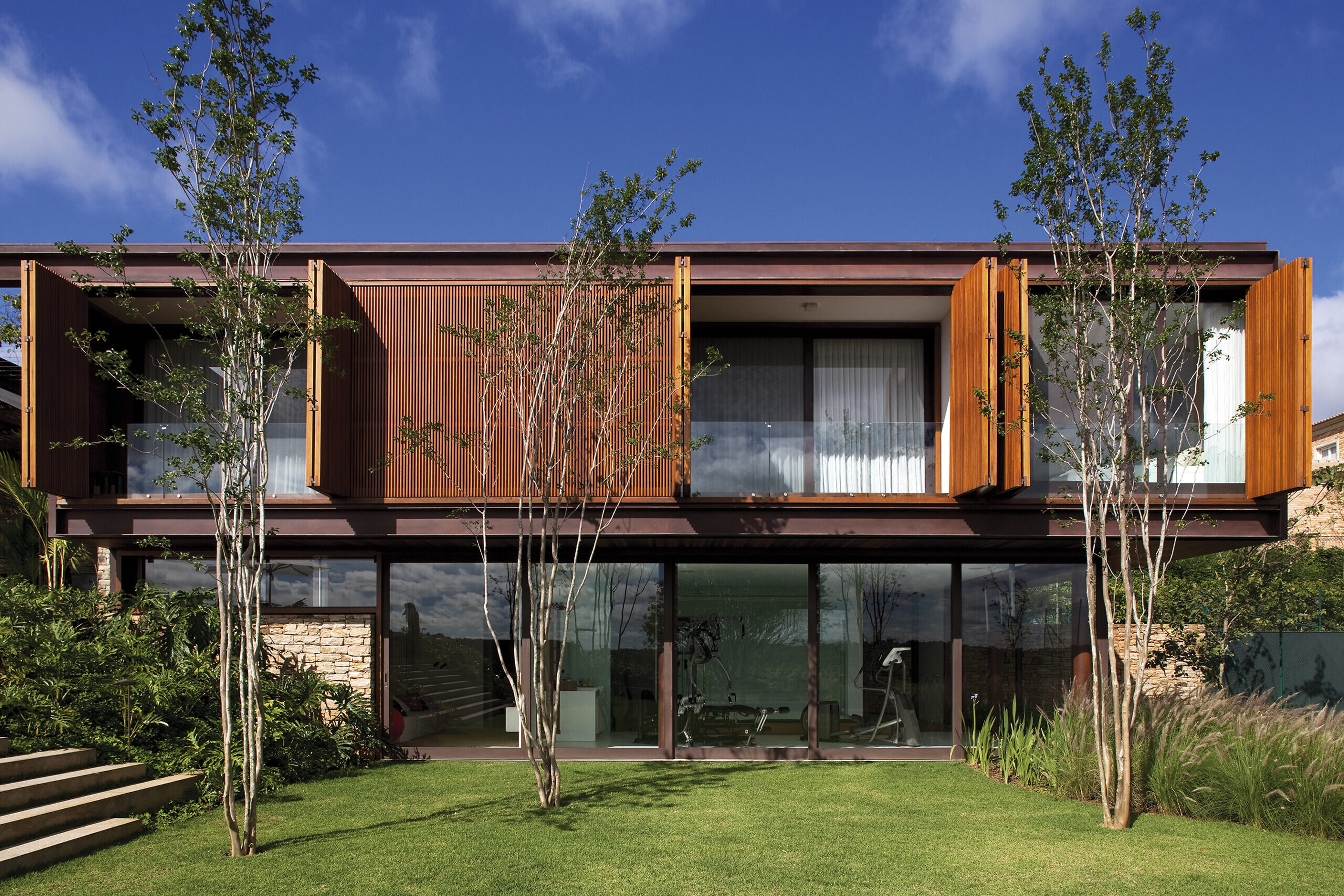

On the main bedrooms, located over the columns, where the absence of eaves was circumvented with the creation of a second vertical plane which protects these areas from exposure to the weather and allowed the existence of independent balconies.

2007_residencia_fn_33
2007_residencia_fn_34
2007_residencia_fn_22

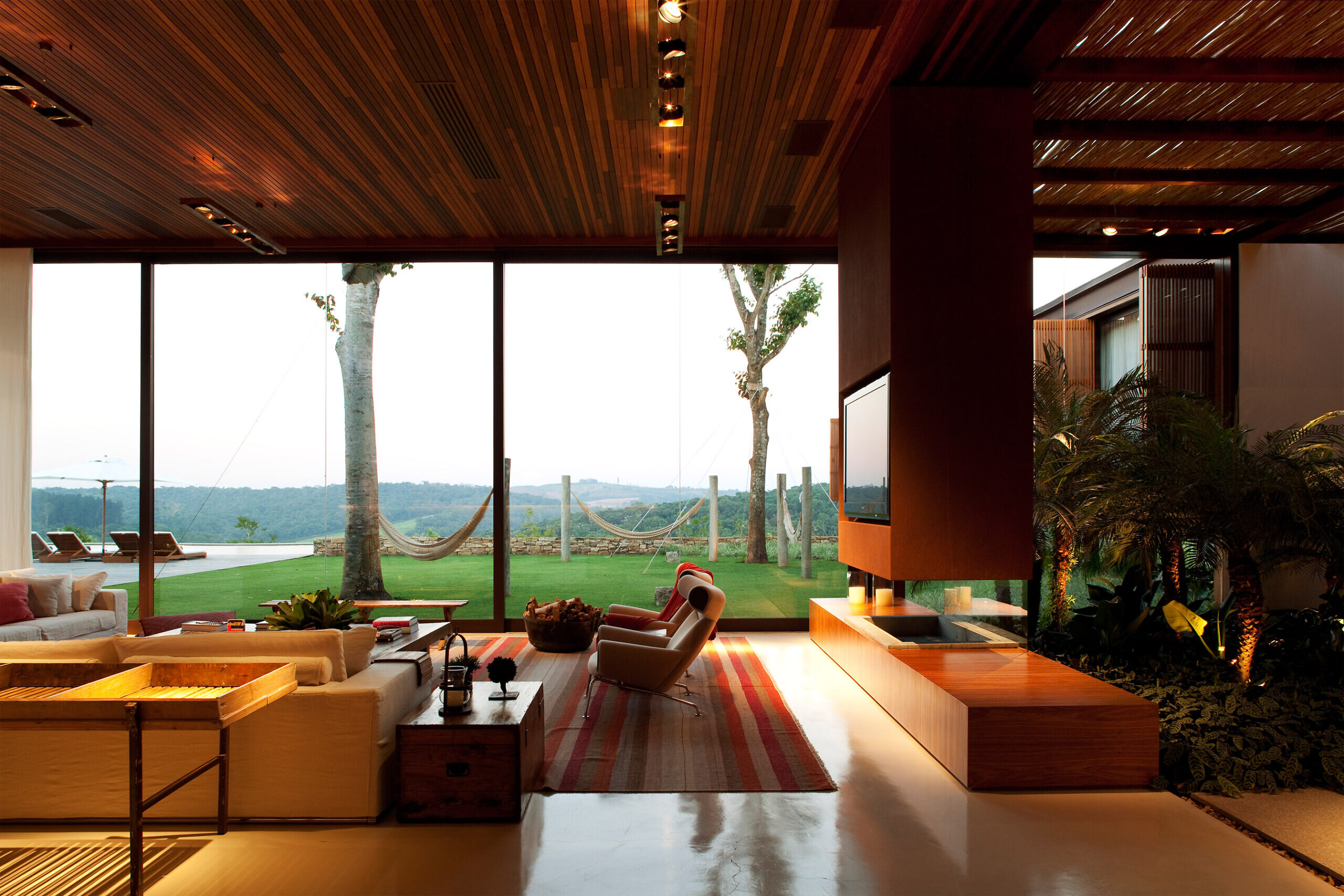

On the plateau, inside the second volume, the social area, alternating internal and external gardens, opens to the veranda and the pool deck. In the same direction, the guest accommodations enjoys a certain independence from the main areas, composing, along with the other wings, opened and closed spaces intercalation inserted into a light and clear structural frame.

2007_residencia_fn_plantas_implantação
2007_residencia_fn_plantas_terreo

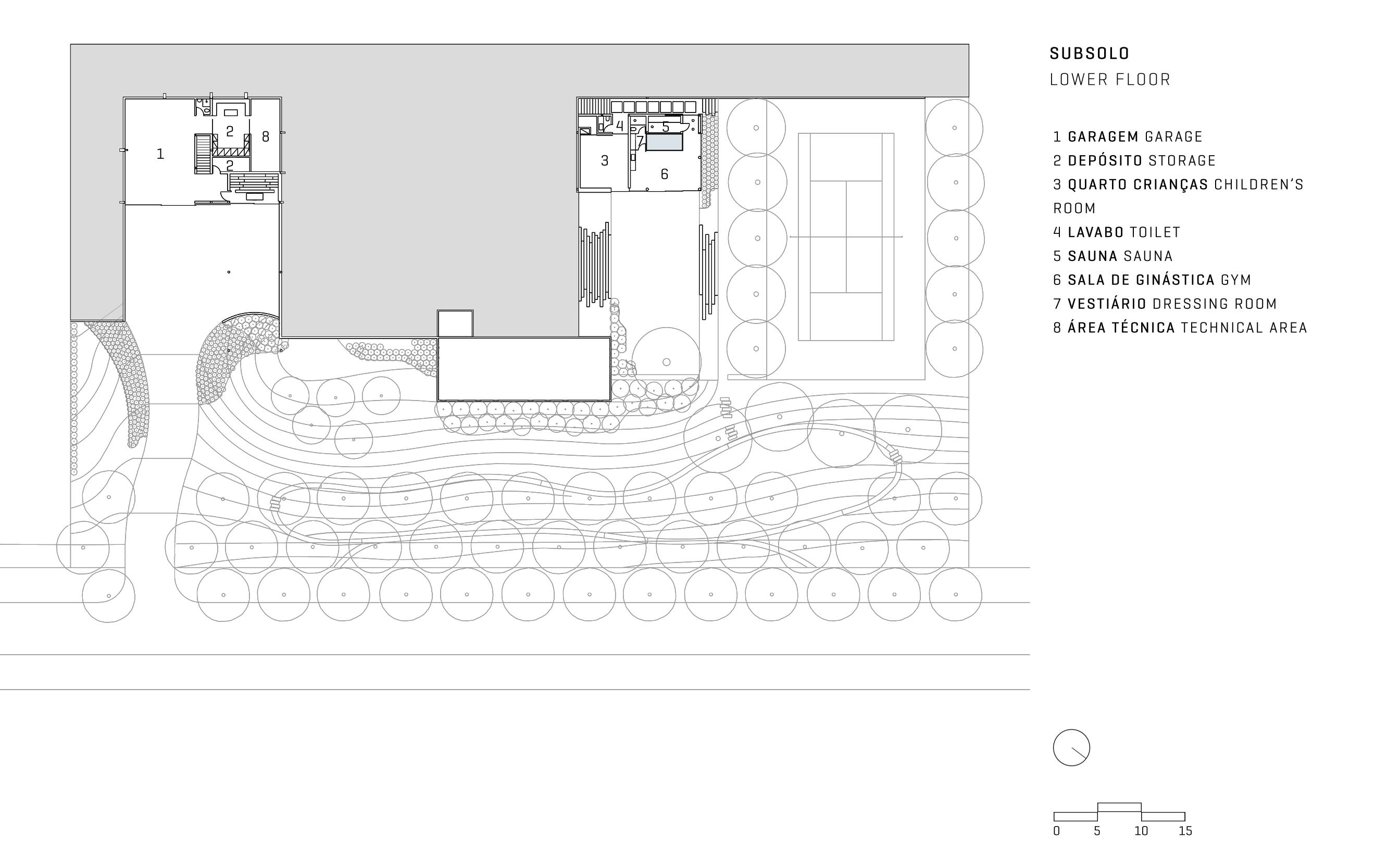

2007_residencia_fn_plantas_subsolo
2007_residencia_fn_plantas_cortes_fachada
